Sludge Drying

Thin Film Sludge Dryers

For municipal biosolids and industrial sludge

LCI thin film sludge dryers spread dewatered sludge into a 1–3 mm film on a heated wall and evaporate the water by indirect contact. You choose the output, from 30% to 90%+ dry solids, for Class A land application, incineration, gasification, composting or landfill.

Updated November 2026

Cutaway rendering of an LCI horizontal thin film sludge dryer, showing the bladed rotor inside the jacketed drying cylinder and the drive motor at one end

What is it

What is a Thin Film Sludge Dryer?

A thin film sludge dryer is an indirect thermal dryer for dewatered municipal and industrial sludge. A bladed rotor spreads the sludge across the inside of a heated cylinder while steam, thermal oil or hot water in the outer jacket supplies the heat. Water leaves as vapor, and the solids leave as dense granules.

Wastewater treatment plants and industrial wastewater treatment plants install sludge dryers after dewatering. Drying cuts the weight and volume they haul and opens beneficial reuse markets for the dried biosolids.

LCI builds its thin film sludge dryer on the same principle as its thin film evaporators, with one difference: the dryer evaporates water out of sludge instead of separating components from a liquid.

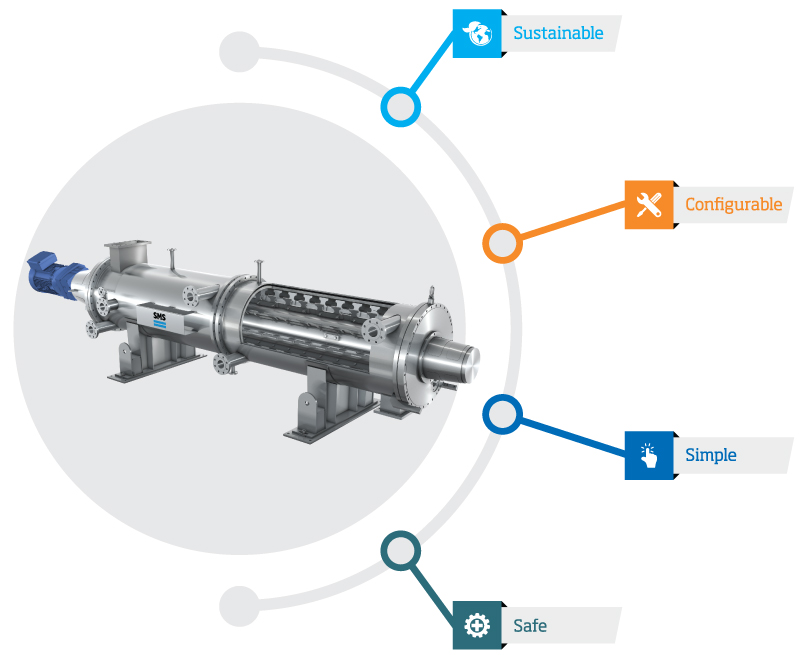

Why should you choose the Thin Film Sludge Dryer?

Achieve More Than
90% Dried Solids

LCI's Thin Film Sludge Dryer is sustainable, configurable, and has a small footprint. It handles a wide variety of sludges including some of the toughest sludge applications. It's simple, safe, and proven technology with over 100 installations with over 30 years of life expectancy and low maintenance.

LCI is also a full solution provider for sludge applications including

  • Pellet Presses
  • Thin Film Evaporators
  • Circle Feeders
  • Dust Collectors
  • Scrubbers

How it works

How a thin film sludge dryer works

Sludge passes through the dryer in five steps, carried by a single bladed rotor inside a jacketed horizontal cylinder. The rotor carries no heating fluid, needs no alignment and is designed to last the life of the dryer.

Pump the cake in

A feed pump delivers dewatered sludge straight into the dryer through a pipe. You need no back-mixing system and no extruder.

Spread a thin film

Rotor blades spread the sludge into a 1–3 mm film against the heated wall and convey it toward the discharge end.

Heat through the wall

Steam, thermal oil or hot water flows through the jacket. Heat passes through the wall into the film without contacting the sludge.

Pull the vapor back

Water vapor flows against the sludge toward the wet feed end, where much of the dust drops back into the process. The exhaust fan pulls the vapor to the spray condenser.

Discharge dried solids

After a short residence time, dried sludge at 30–90%+ DS leaves through a rotary valve to an optional cooling screw and on to storage or further processing.


Sludge drying equipment in a complete system

The Thin Film Sludge Dryer System Consists of:

  • Horizontal thin film sludge dryer:
    Rotor with bolted blades, heating jacket
  • Feed pump:
    Pumps cake directly into the dryer
  • Rotary valve:
    Discharges dried solids
  • Spray (barometric) condenser:
    Condenses vapor, captures dust
  • Exhaust fan:
    Holds the dryer under negative pressure
  • Product cooler:
    Optional, used when drying to about 90% DS



Run it 24 hours a day or one shift

Automated controls handle continuous operation or limited daily hours of 8–12 hours. The rotor empties the dryer in 15 minutes or less, so you can start up and shut down each day without leaving sludge inside.

Thin film sludge drying system layout with feed pump, horizontal thin film dryer, cooler, rotary valve, spray condenser and exhaust fan
Thin film dryer rotor

What can it handle

Which sludges can a thin film sludge dryer handle?

Belt dryers need well-dewatered cake that holds a noodle shape. The thin film dryer's rotor spreads whatever you pump in, so the same sewage sludge dryer handles sticky, liquid and poorly dewatered feeds as well as industrial sludge.

By source and treatment

  • Digested, undigested and thermal hydrolysis (THP) sludge
  • Primary, secondary or blended sludge
  • Industrial wastewater sludge
  • Biomass and high strength waste
  • Sludge with high organic content

By condition

  • Poorly dewatered sludge
  • Poorly screened sludge
  • Sticky and pasty sludge
  • Liquid and slurry-like sludge
  • Fibrous or free-flowing sludge

How much can it dry

Dry solids from 30% to 90%+, set by your end use

You pick the dryness. The thin film dryer partially or fully dries, and you can change the target %DS when your disposal route changes. Because the rotor agitates the whole film, partially dried product has the same dryness from surface to core.

Dryness scale from 10% to 100% dry solids. Dewatered feed cake typically arrives at 15–25% DS. The dryer produces 30–45% DS for incineration, 50–70% DS granules for composting and landfill, and 80–90%+ DS for agricultural use, solid fuel, gasification and pyrolysis.
  • 15–25% DS

    Typical dewatered feed cake

    • Centrifuge, belt press or other dewatering
    • Pumped straight into the dryer
  • 30–45% DS

    Partial drying for thermal destruction

    • Mono-incineration in a fluidized bed
    • Co-incineration with solid waste
    • Cement kiln or hazardous waste incineration
  • 50–70% DS

    Granules

    • Composting
    • Landfill
  • 80–90%+ DS

    Full drying, with product cooler

    • Agricultural use as Class A biosolids
    • Solid fuel
    • Gasification
    • Pyrolysis

Dried product characteristics

  • ShapeSpherical, pellet-like granules
  • Size2–6 mm; granules get smaller as %DS rises
  • Bulk densityGreater than 40 lb/ft³
  • Dust contentBelow 5% under 0.5 mm

Spherical, dense granules spread with standard agricultural spreaders, much like commercial fertilizer. If you need a specific size, add the Linear Dryer for a low-dust granule, or LCI's pellet mills and granulation equipment. To meter dried granules into a pellet mill, bagging line or truck loadout without bridging or ratholing, add LCI’s Circle Feeder.

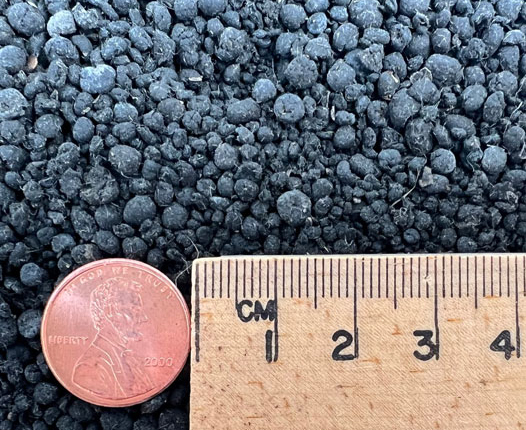

Dried sludge granules from a thin film sludge dryer next to a ruler marked in inches and a US penny for scale
Granules from a thin film sludge dryer, shown with a penny and an inch ruler for scale.

Class A biosolids under 40 CFR Part 503

Fully dried product from the thin film biosolids dryer can meet the EPA's 40 CFR Part 503 Class A requirements.

  • Pathogen reduction, Alternative 1: time and temperature.
  • Pathogen reduction, Alternative 5 (PFRP heat drying): indirect drying to 10% moisture or less while the biosolids exceed 80°C (176°F).
  • Vector attraction reduction, Option 7: at least 75% solids when the biosolids contain no unstabilized solids.
  • Vector attraction reduction, Option 8: at least 90% solids when the biosolids contain unstabilized solids.

Energy

Energy use, heat sources and heat recovery

Thermal and electrical energy are the largest operating costs in thermal sludge drying. The thin film dryer pushes heat into the sludge through a wall, so it heats a 20–200 CFM vapor stream instead of thousands of CFM of drying air.

Typical thermal energy use, without heat recovery

DutyBTU per lb of water evaporated
Full dryingLess than 1,150
Partial dryingLess than 1,300

Heating medium limits

MediumTypical upper limit
Steam356°F (180°C) at 145 psia (10 bara)
Thermal oil428°F (220°C)
Hot water284°F (140°C)

LCI does not recommend hotter walls: above these limits the Leidenfrost (film boiling) effect lowers drying efficiency.

Heat sources

You can heat the steam, thermal oil or hot water with natural gas, digester gas, electricity, solar energy or waste heat from other processes.

Heat recovery

Recover up to 90% of the dryer's heat as 194°F (90°C) hot water for digester heating, district hot water or preheating sludge.

Vacuum drying

Lower the evaporation temperature so the dryer runs on low pressure steam or hot water down to 194°F (90°C). Thermal use and greenhouse gas emissions drop by 10%.

Dual-stage drying

Use one dryer's waste heat to heat a second dryer and cut heat consumption by up to 45% against the basic dryer.

Upgrade later

Start with the basic dryer and add heat recovery or vacuum drying when budgets or carbon targets change.

Safety

Safety and emissions control

Dried sludge burns, and dust from drying carries the highest fire and explosion risk. A fire needs oxygen, fuel and ignition; the thin film dryer takes oxygen out and keeps ignition sources away from the sludge.

Fire and explosion protection

  • Indirect heating

    No combustion gases or embers from the heating system enter the drying chamber.

  • Inert atmosphere

    Controls hold oxygen below the levels that support fire or explosion.

  • Negative pressure

    The fan pulls dust and drying vapors into the emissions system and away from operators.

  • No spark contact

    Moving parts inside the dryer never touch each other.

  • Instrumentation and controls

    The control system monitors and maintains safe drying conditions throughout the process.

LCI designs each system to current NFPA codes and works with your Dust Hazard Analysis team on the whole drying line. LCI's parent company, Nederman, and sister company Nederman MikroPul bring experience in combustible dust applications and industrial air filtration to each project.

Odor and emissions

Sludge drying can release hydrogen sulfide (H₂S), ammonia (NH₃) and volatile organic compounds such as amines (EPA, Guide to Field Storage of Biosolids, Chapter 2). Check your local air regulations when you size a dryer.

Exhaust airflow

Thin Film Sludge Dryer: 20–200 CFM
Belt Dryer: 2,000–15,000 CFM

A small vapor stream means small emissions equipment. An open barometric condenser removes most of the evaporated water and dust first, and its open design resists the fouling from sulfur, fats, oils and grease, and hard-water deposits that clogs packed-media condensers.

You can then send the remaining air to a small odor control unit, to your existing odor control system, or into the thermal heater's combustion air for oxidation.

Maintenance

Maintenance with one main wear part, done at floor level

The bolted blades on the rotor are the main wear part. LCI recommends a yearly inspection; depending on the sludge, blades need replacing every 1–2 years. Your own maintenance staff can do the work. Bearings need replacing every 5 years.

  1. Remove the dryer end plates.
  2. Pull the rotor out on its preconfigured trolley.
  3. Unbolt worn blades and bolt on new ones at floor level.
  4. Slide the rotor back in and reassemble.

Your crew leaves the drive, feed pipe and vapor ductwork connected, keeps the heating fluid in the jacket, and skips heavy vertical lifts and factory re-synchronization. Plan a clear area as long as the dryer for pulling the rotor; that area can sit outdoors.

For spare blades and service, see evaporator and dryer parts and service.

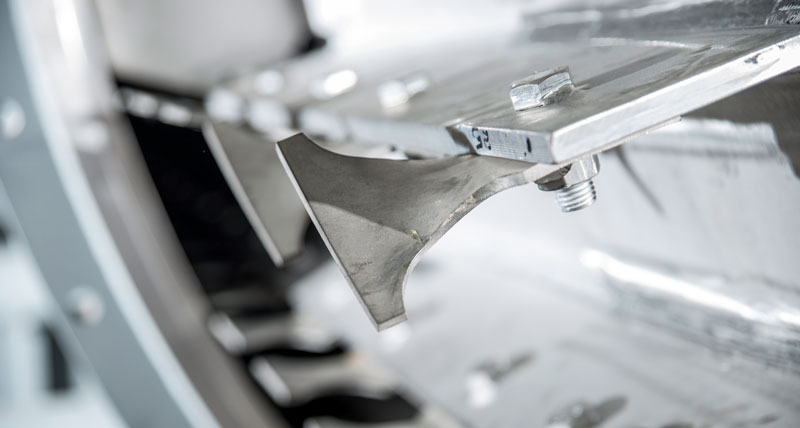

Close-up of a bolted blade on a thin film sludge dryer rotor
A bolted rotor blade, the dryer's main wear part.

Comparison

How thin film sludge dryers compare with paddle and belt dryers

Paddle (screw) dryers share the thin film dryer's indirect principle and differ in how they move the sludge. Belt dryers blow heated air through sludge laid on moving belts. The table draws on LCI's two technology comparisons; belt and paddle figures vary by manufacturer.

CriterionThin film dryerPaddle (screw) dryerBelt dryer
Drying principleIndirect: heated wall,
agitated thin film
Indirect: heated trough and
heated augers, thick sludge layer
Direct: heated air through
sludge on 1–2 belts
Heating temperatureTypically 350–425°F;
vacuum option runs
on 194°F water
Steam or thermal oil150–375°F; uses low-temperature
waste heat
Thermal energy at
about 90% DS
1,150–1,200 BTU/lb waterHigher than thin film1,300–1,600 BTU/lb water
Electrical energy0.015–0.040 kWh/lb waterLower than thin film
(slow-turning augers)
0.015–0.07 kWh/lb water
Exhaust airflow20–200 CFMSmall2,000–15,000 CFM
Feed systemPump and pipeNo complex feed systemExtruder or "noodle"
forming system
Sticky or poorly
dewatered sludge
AcceptedAcceptedNeeds well-dewatered cake
Partial dryingYes, 30–70% DS
with even dryness
YesMost units cannot dry
below 70% DS
Rotating assembliesOne unheated rotor;
4 drive systems in total
Two heated augers that
must stay synchronized
Belts, 2–16 fans, feed systems;
4–28 drive systems
Main wear partsBolted rotor bladesAugers and shaft sealsFeed extruders, belts, heat exchanger
and condenser cleaning systems
Who services itPlant staff, at floor
level, every 1–2 years
Heavy lifting and factory
technicians to synchronize augers
Often a factory technician,
every 1–5 years
Emptying at shutdownAutomatic, 15 minutes or lessManual removal; needs
more feed to push sludge out
A couple of hours
SizeUnder 12 ft wide, 12 ft tall,
70 ft long; fits a 1–2 story building
Small footprint; needs
high vertical clearance for auger service
Can exceed 15 ft wide, 20 ft tall,
100 ft long; 3–4 story building
Dried productSpherical, 2–6 mm,
40–50 lb/ft³
Free flowing granules,
flaky material
"Cheeto-like," 5–10 mm,
10–30 lb/ft³



The thin film dryer leads on thermal energy, reuse of recovered heat, vapor volume, acceptance of difficult sludges, partial drying, building size and maintenance cost.

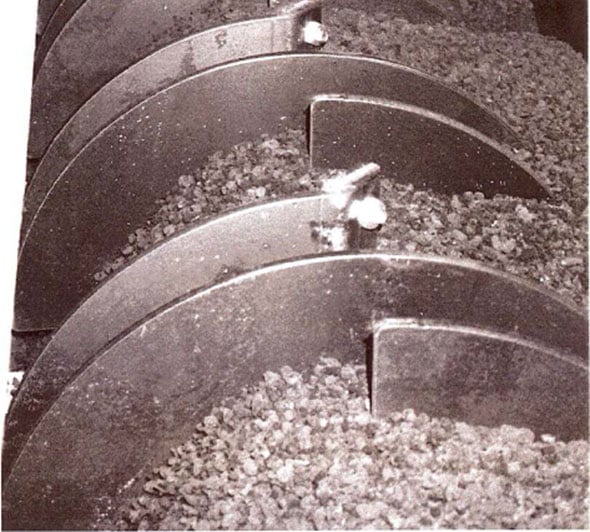

Inside the Linear Dryer: a slow auger mixes granules against the heated wall.
Inside the Linear Dryer: a slow auger mixes granules against the heated wall.

Add a Linear Dryer for 90%+ DS granules

The Linear Dryer is a second-stage dryer that takes sludge past its sticky phase, usually at 60–70% DS from the thin film dryer, and dries it to 90%+ DS. A slow auger and blade assembly mixes the sludge against a heated wall, which keeps dust low, holds granule shape and uses little energy.

Use it to:

  • Produce a granular, low-dust product
  • Add evaporation capacity to an existing drying system
  • Make two products from one line: 60–70% DS for landfill and 90% DS for Class A agricultural use

Proven in sludge drying for more than 30 years

Buss-SMS-Canzler, a leading thin film technology specialist, developed the thin film sludge dryer. LCI, part of the Nederman Group, engineers, supplies and services it from Charlotte, North Carolina.

30+
years drying sewage sludge
100+
installations worldwide
Since 2008
in service in the United States

Biosolids, industries at a crossroads

Chip Pless looks at the future of biosolids disposal, carbon sequestration from biosolids and why sludge drying matters, framed by the 17 Sustainable Development Goals the United Nations adopted in 2015.

Size and price your sludge dryer

LCI sizes each dryer with heat transfer coefficients developed from years of experience in evaporation and drying projects, then prices the sized system. Send these seven inputs to start a design:

  1. Sludge type
  2. Sludge quantity, in wet or dry tons per year
  3. Feed solids (%DS)
  4. Required discharge solids (%DS)
  5. Required dried product characteristics, such as size, density and dust
  6. Available heating medium and its temperature
  7. Planned operating hours per year

Downloads

Common things to know

Frequently Asked Questions

Answers to common questions about the Thin Film Sludge Dryer

Yes. LCI's thin film sludge dryer can be designed and operated to support the production of Class A biosolids under 40 CFR Part 503. Compliance depends on meeting the applicable pathogen reduction, vector attraction reduction, monitoring, and other regulatory requirements.

LCI's thin film sludge dryer uses less than 1,150 BTU per pound of water evaporated for full drying and less than 1,300 BTU/lb for partial drying, before heat recovery. It can recover up to 90% of its heat as 194°F (90°C) water. Vacuum drying cuts thermal use by 10%, and dual-stage drying by up to 45%.

The dryer runs on steam up to 356°F (180°C) at 145 psia, thermal oil up to 428°F (220°C) or hot water up to 284°F (140°C). You can generate that heat from natural gas, digester gas, electricity, solar energy or waste heat. LCI does not recommend higher temperatures because film boiling lowers drying efficiency.

The bolted rotor blades are the main wear part. LCI recommends a yearly inspection: plant staff remove the end plates, pull the rotor out on a preconfigured trolley and replace worn blades at floor level. Nobody drains heating fluid, lifts heavy parts or re-synchronizes the rotor. Bearings need to be replaced every 5 years.

Paddle dryers also dry indirectly but use two heated augers that need synchronizing and heavier maintenance. Belt dryers blow hot air through sludge, exhaust 2,000–15,000 CFM and use 1,300–1,600 BTU/lb, against 1,150–1,200 BTU/lb for a thin film dryer at 90% DS. Belt dryers can run on low-temperature waste heat down to 150°F.

The dryer holds oxygen below fire and explosion levels with an inert atmosphere, heats indirectly so no flames or embers reach the sludge, runs at negative pressure, and has no internal moving parts that touch to create sparks. LCI designs to current NFPA codes and works with your Dust Hazard Analysis team.
