Twin Dome Granulator 60
The TDG-60 (Twin Dome Granulator) produces granules from 0.3 mm to 2.0 mm diameter with reduced die breakage risk, consistent internal fill, and a dome die matched directly to the lab-scale MG-55 for predictable scale-up.

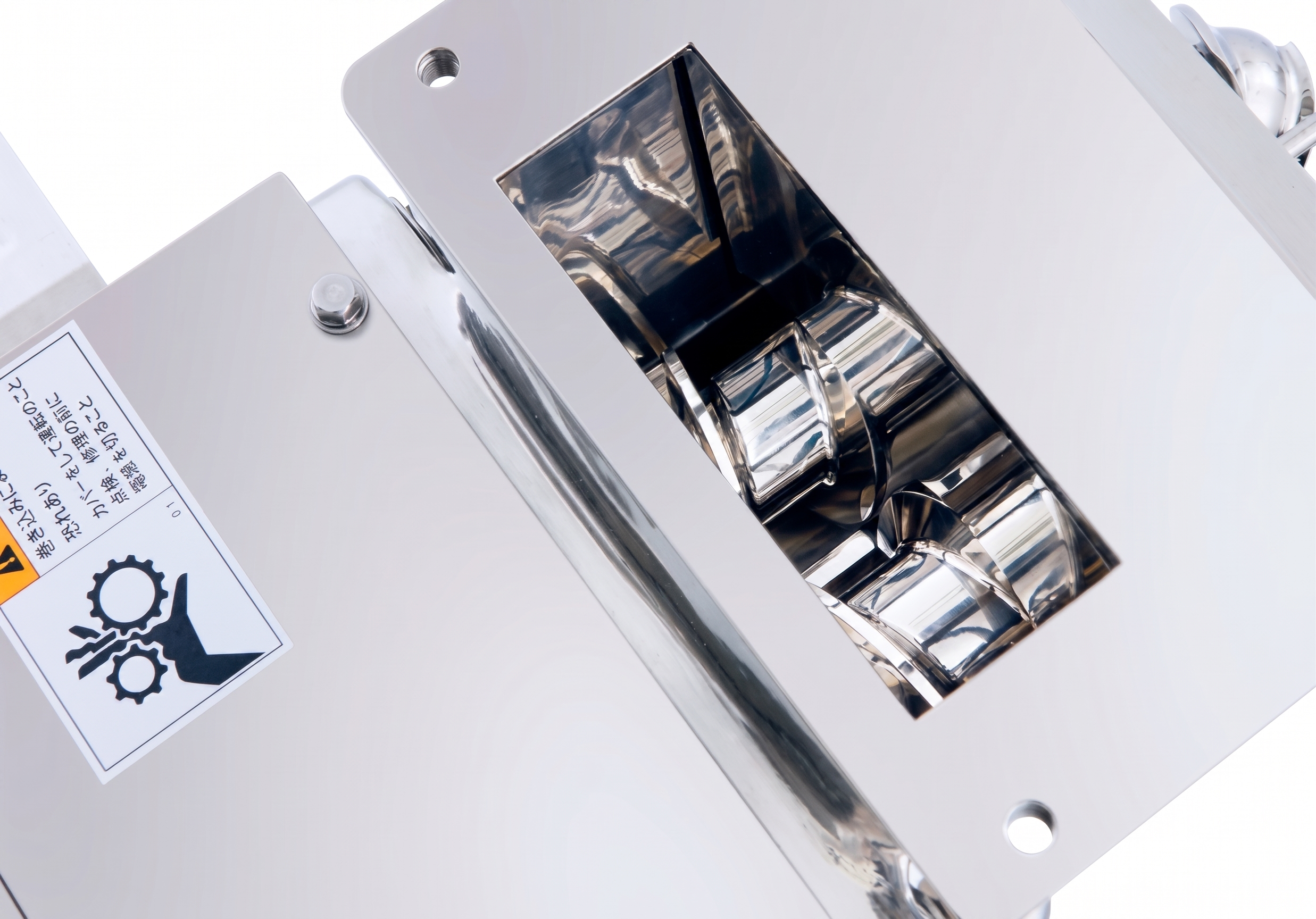

Why TDG-60
Three design decisions that separate the TDG-60 from conventional extrusion granulators when small granule size and consistent quality matter.
Compared to the conventional TDG-80 and TDG-110, the TDG-60A uses a smaller die diameter with increased structural strength. This directly reduces the risk of die breakage when producing small-diameter granules — a common failure point in standard-size machines.
Even during small-quantity production runs, the TDG-60A maintains sufficient internal fill volume to preserve granule physical properties. Output quality does not degrade when batch sizes are reduced.
The TDG-60A uses a dome die identical in size to the lab-scale MG-55. Process parameters developed at laboratory scale transfer directly to production, reducing the scale-up risk that often delays commercialization.
Compared to conventional TDG-80, TDG-110, the die diameter is smaller and the strength is increased
Even when producing small amounts, it can maintain the internal filling amount and maintain the physical properties of granules
Reduced scale-up risk by using a dome die that is the same size as a lab scale machine (model MG-55)

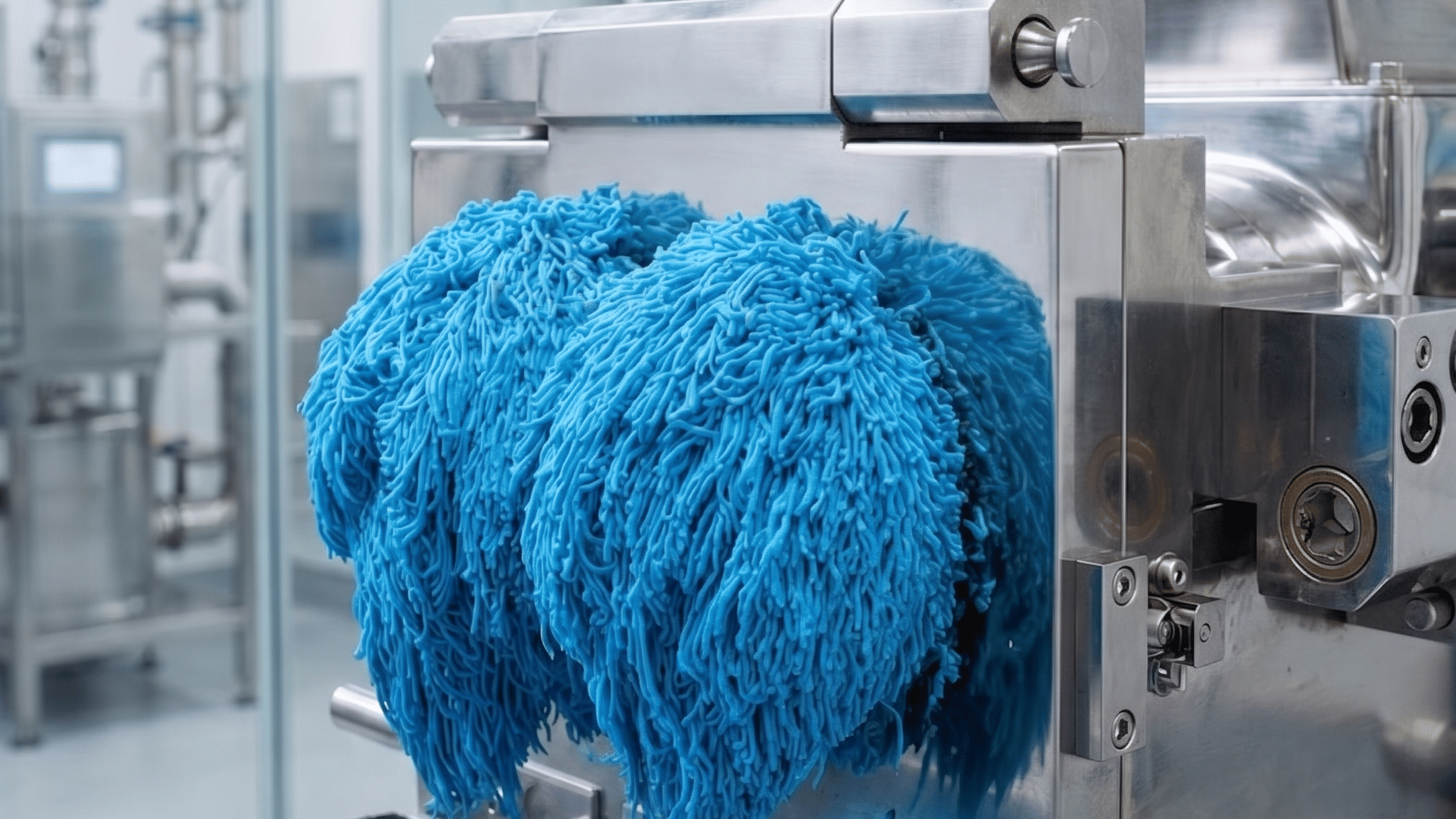

Output Quality

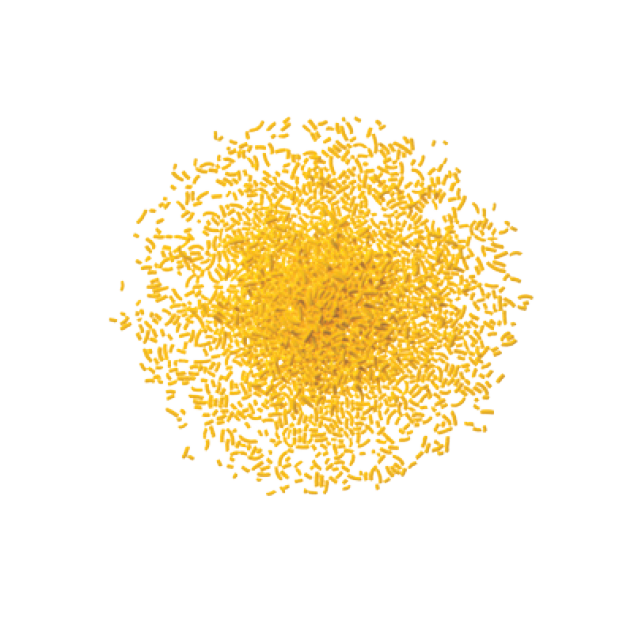

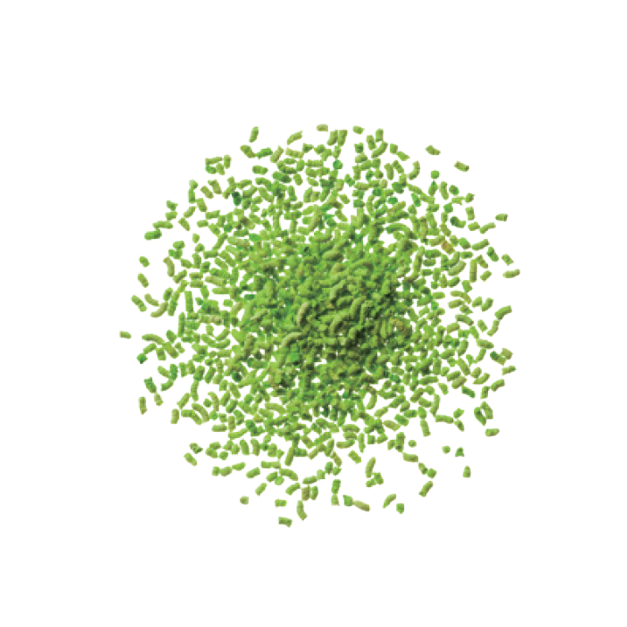

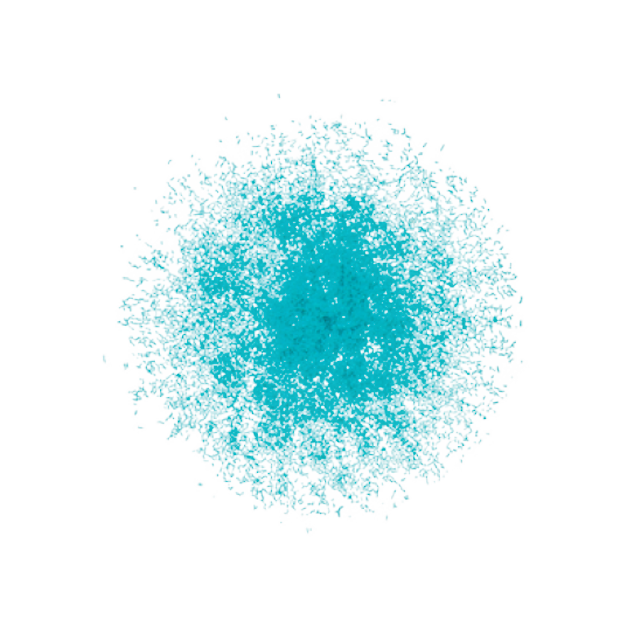

The TDG-60 supports a broad granule diameter range. Below are representative outputs at three key sizes within the 0.3–2.0 mm operating range.
LCI Test Center — Charlotte, NC
The LCI Test Center connects laboratory development with full-scale commercial production — enabling validated, predictable scale-up and regulatory-grade process documentation from a single partner.
Validate process solutions with real materials on full-scale equipment — not scale-down simulations
Conduct pilot-scale trials for evaporation, drying, granulation, extrusion-spheronization, and drug pelleting
Generate qualification samples and scale-up datasets for commercial design and regulatory submissions
Enable linear scale-up from lab through pilot to commercial — reducing development risk and timeline
Expert process engineering support from LCI throughout development, testing, and scale-up activities
Technical Data
Complete technical specifications for the TDG-60 extrusion granulator. All figures are as published in the LCI product datasheet.
| Parameter | TDG-60A Value |
|---|---|
| Model | TDG-60A New |
| Throughput | small-scale continuous |
| Motor | 1.5 kW |
| Gross Weight | approx. 600 kg |
| Installation Area | 580 × 1300 mm |
| Overall Height | 1180 mm |
| Dome Die Material | SUS304 / SUS316 |
| Dome Die Diameter | 0.3 – 2.0 mm |
| Pneumatic / Hydraulic Swing Clamp | ○ Standard (2 pcs) |
| With Pneumatic / Hydraulic Sensors | ○ Standard |
| Screw Rotation Speed | 30 – 120 min⁻¹ |
| Power Source | AC200V / AC400V / AC460V class, Three Phase, 50Hz/60Hz |
○ indicates standard specification. Specifications subject to change without notice
Model Comparison
Select the right Twin Dome G model based on throughput requirements, granule size targets, and automation needs.
| Specification | TDG-60A | TDG-80A | TDG-110PA |
|---|---|---|---|
| Throughput | Small-scale | 100-150 kg/h | 200-300 kg/h |
| Motor | 2hp | 5hp | 10hp |
| Dome Die Diameter | 0.3–2.0 mm | 0.5–2.0 mm | 0.5–2.0 mm |
| Min. Granule Size | 0.3 mm | 0.5 mm | 0.5 mm |
| Die Breakage Risk (Small Ø) | Reduced | Higher | Higher |
| Swing Clamp Qty | 2 pcs | 2 pcs | 3 pcs |
| Installation Area | 580×1300 mm | 640×1500 mm | 640×1850 mm |
| Gross Weight | ~600 kg | ~650 kg | ~900 kg |
| Lab Scale Match (MG-55) | ✓ | — | — |
Frequently Asked Questions
Common questions from engineers and process designers evaluating the TDG-60A for small-scale granulation applications.
Contact LCI to request a quotation, discuss your granulation requirements, or arrange a product demonstration. Specify your target granule size, material, and throughput for a tailored recommendation.
Last updated: June 2026
The TDG-60A dome die supports diameters from 0.3 mm to 2.0 mm. This extends below the 0.5 mm minimum available on the TDG-80A and TDG-110PA, making it the appropriate choice for fine granule applications where conventional machines carry elevated die breakage risk.
The TDG-60A uses a smaller dome die diameter with increased structural strength — specifically to reduce die breakage risk at small granule sizes. The TDG-80A and TDG-110PA are higher-throughput machines (100-150 kg/h and 200-300 kg/h respectively) with touch panel operation, but their conventional die design makes small-diameter production riskier.
Yes. The TDG-60A uses a dome die that is the same size as the lab-scale MG-55. Process parameters, formulations, and operating conditions developed during R&D on the MG-55 transfer directly to the TDG-60A, reducing scale-up risk and development time.
The TDG-60A dome die is available in SUS304 and SUS316 stainless steel. SUS316 offers enhanced corrosion resistance and is commonly specified for pharmaceutical, food, or chemically aggressive applications.
The TDG-60A operates on AC200V / AC400V / AC460V class, Three Phase, 50Hz/60Hz power supply. The motor rated at 1.5 kW makes it the lowest-power model in the Twin Dome Granulator range.
Yes. The TDG-60A is specifically designed to maintain internal fill volume even during small-quantity production, preserving granule physical properties. This is a known challenge with larger-format machines running at reduced capacity.
Fully staffed Test Center with scale-up support available in Charlotte, NC.
